OE Solutions and AimValley jointly developed the Smart SFP™, a new class of SFP that integrates intelligent and innovative system functions into an SFP module.

Ethernet OAM Smart SFP

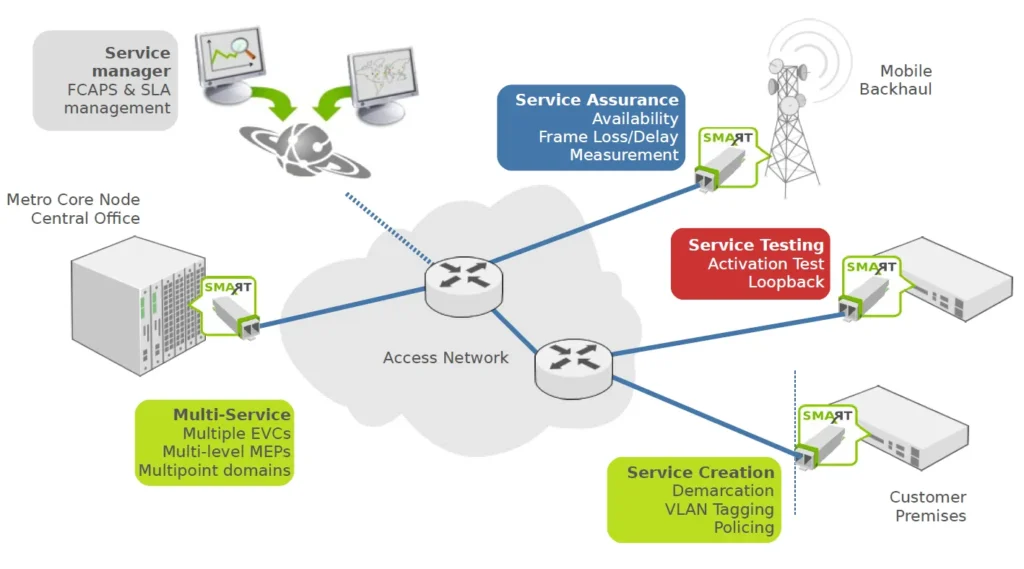

Designed in conformance with the Small Form Factor Pluggable 20-pin Multi-Source Agreement (MSA), Ethernet OAM Smart SFP™ provides Operations, Administration and Maintenance (OAM) tools for Service Activation Test and Service Level Assurance in Carrier Ethernet network.

Ethernet OAM Smart SFP™ uses standardized protocols and tools to monitor and troubleshoot a network:

Physical layer monitoring via remote digital diagnostics and Link OAM

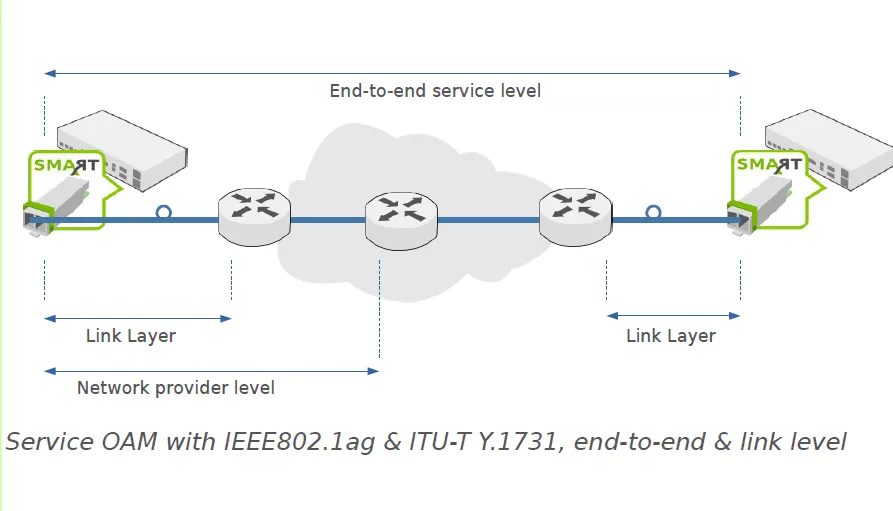

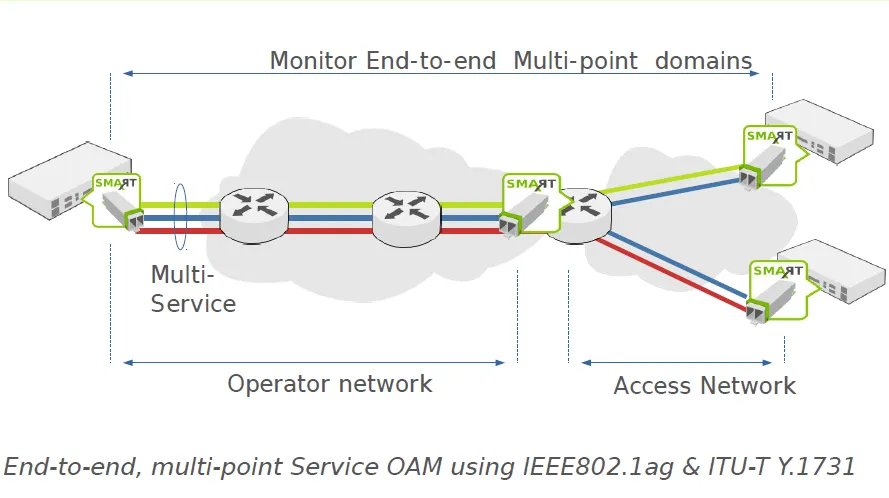

Service Assurance using Ethernet OAM, Y.1731
Service Activation Test for Y.1564 and RFC2544

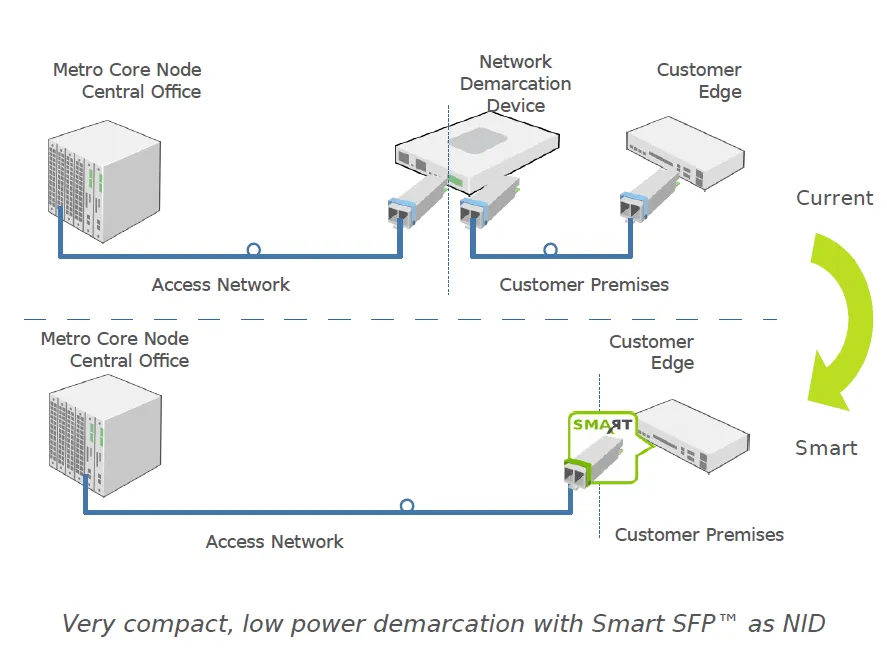

Service Creation and demarcation with VLAN tag²

The integration of TSoP into an SFP greatly reduces system and network complexity and offers a lower carbon footprint while generating CAPEX & OPEX savings. An API and SNMP MIBs are available to facilitate the integration in existing equipment and management systems. This management interface allows for the configuration and monitoring of relevant parameters. The Smart SFP transceivers are designed in conformance with the Small Form Factor Pluggable 20-pin Multi-Source Agreement (MSA).

IP OAM Smart SFP

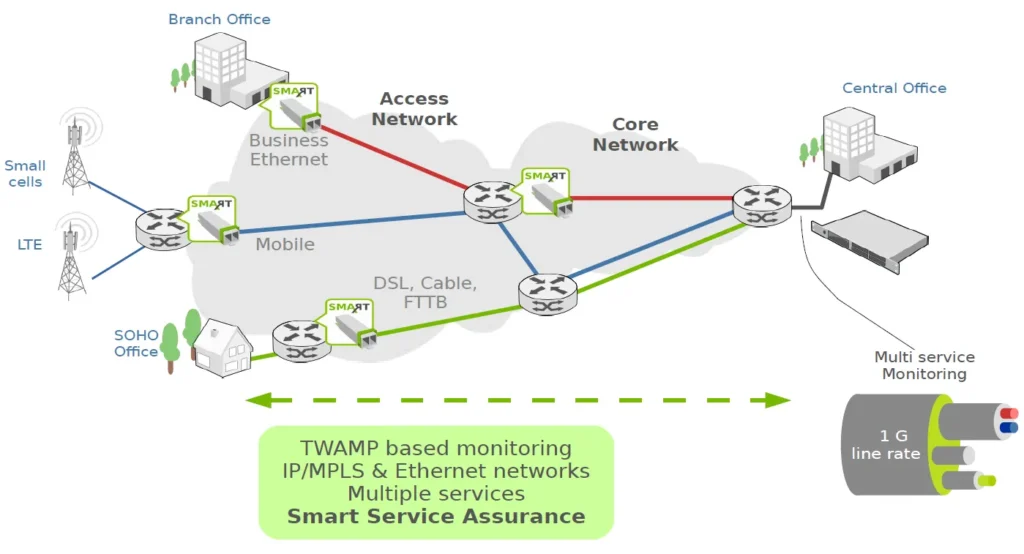

Operations, Administration and Maintenance (OAM) tools are essential for service turn-up and Service Level Assurance in IP networks. The Smart SFP™ provides operators with these tools for monitoring and troubleshooting IP services by simply replacing a conventional SFP with a Smart SFP™. This solution reduces system and network complexity, and offers lower carbon footprint while generating CAPEX & OPEX savings.

The TWAMP Smart SFP™ modules provide customers an easy solution for monitoring and troubleshooting using standardized protocols at various operational layers:

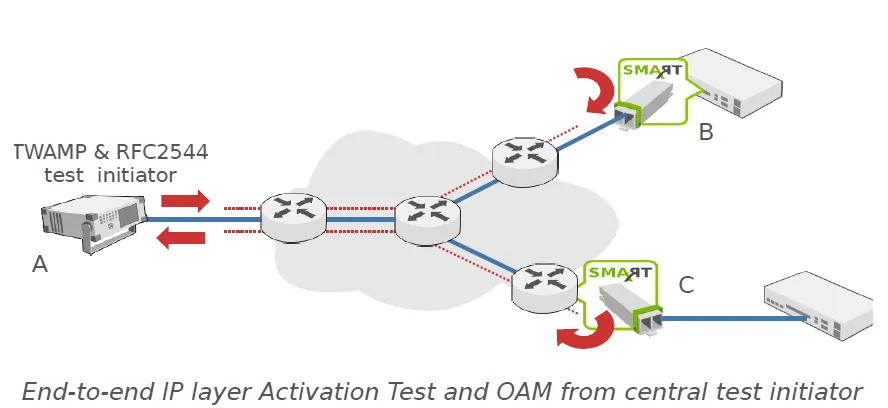

IP layer service monitoring using TWAMP Light according to RFC5357
Physical layer monitoring via remote DDMI digital diagnostics monitoring retrieval

These integrated OAM capabilities are complemented with Gigabit Ethernet wire speed and very low latency. The Smart SFP™ serves a wide range of optical and reach applications: duplex fiber, single fiber bidirectional, and single wavelength bidirectional, including CWDM with reaches up to 80 km at industrial temperature range. An API is available to facilitate the integration in existing equipment and management systems. This management interface allows for configuration and monitoring of relevant parameters. The Smart SFP™ transceivers are compatible with the Small Form Factor Pluggable 20-pin Multi-Source Agreement (MSA).
