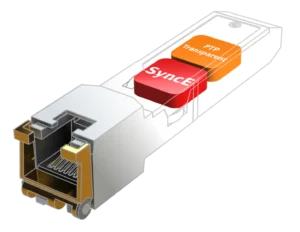

Chronos Smart SFP™ TS module is an electrical SFP that fully supports the demanding timing requirements for todays networks.

The Chronos Smart SFP TS is transparent for the IEEE 1588v2 protocol and supports Synchronous Ethernet over a copper connection. This allows operators to utilize copper cables on SFP ports and still meet timing and synchronization requirements for demanding applications like LTE-Advanced in mobile networks. The Chronos Smart SFP is designed in conformance with the Small Form Factor Pluggable Multi-Source Agreement (MSA).
1Future release

Your Benefits

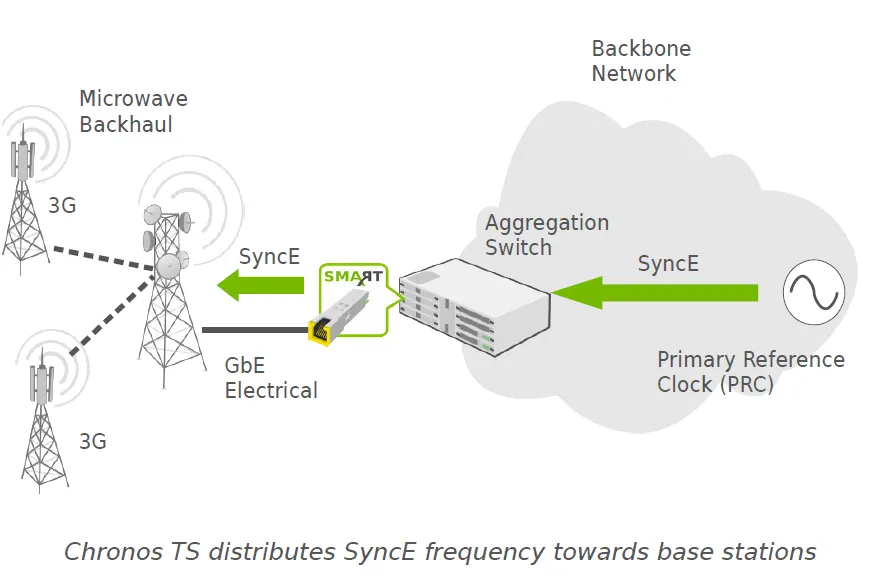

  • Frequency sync for 3G backhaul

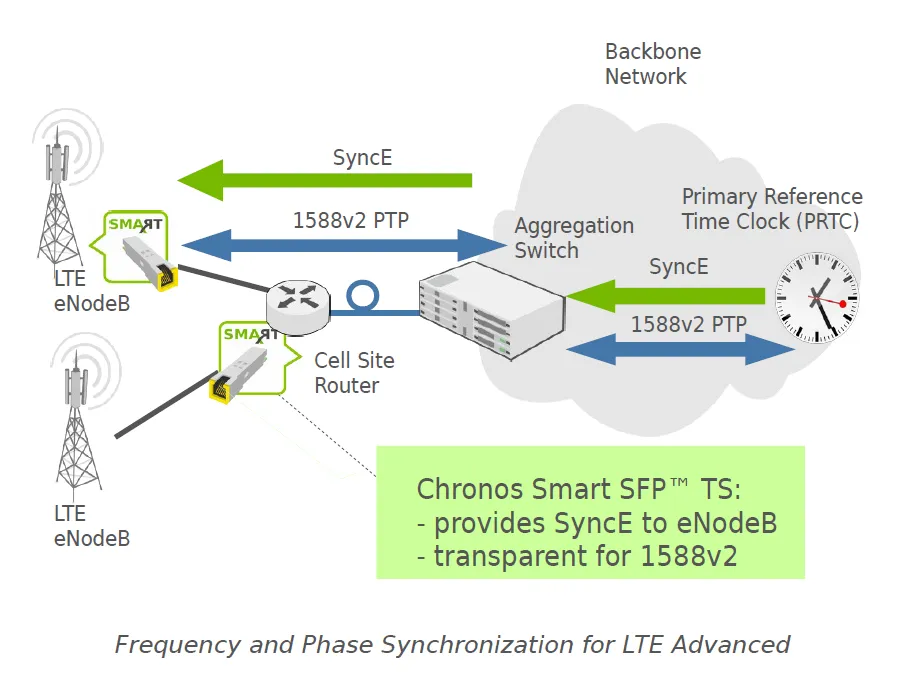

  • Phase sync for LTE backhaul
  • SyncE Master or Slave
  • Transparent for IEEE 1588v2 PTP
  • Compact Copper RJ45 transceiver
  • 1000BASE-T or 100BASE-T1

Applications

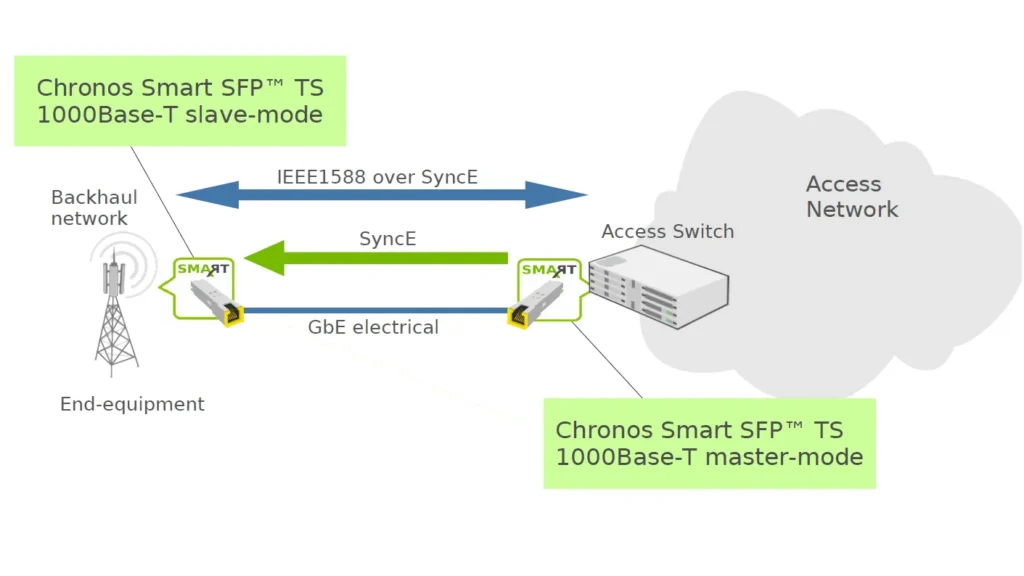

Chronos TS Smart SFP in master and slave mode
